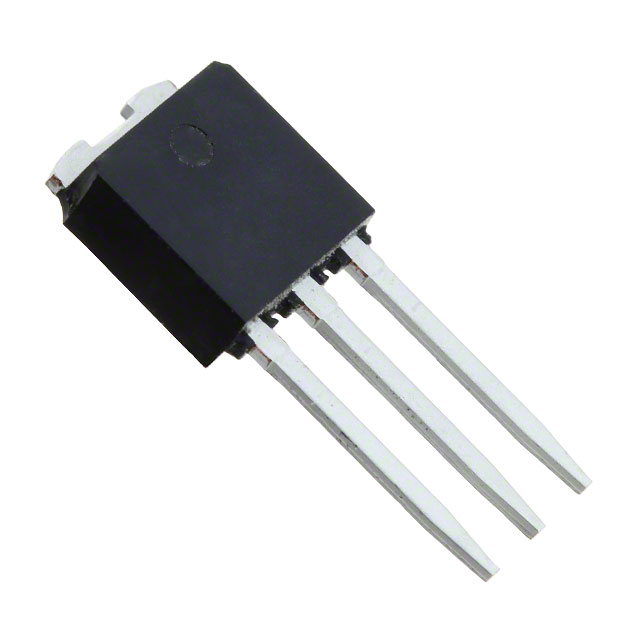

| Part Number | STD70N03L-1 | STD90N03L-1 | STD50N03L-1 | STD70N02L-1 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 70A (Tc) | 80A (Tc) | 40A (Tc) | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V | 5V, 10V | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 35A, 10V | 5.7mOhm @ 40A, 10V | 10.5mOhm @ 20A, 10V | 8mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA | 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 5 V | 32 nC @ 5 V | 14 nC @ 5 V | 32 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 25 V | 2805 pF @ 25 V | 1434 pF @ 25 V | 1400 pF @ 16 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 70W (Tc) | 95W (Tc) | 60W (Tc) | 60W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
