STMicroelectronics-STD50NH02L-1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	24 V
Current - Continuous Drain (Id) @ 25°C:	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	5V, 10V
Rds On (Max) @ Id, Vgs:	10.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	24 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1400 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	60W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-251 (IPAK)
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA

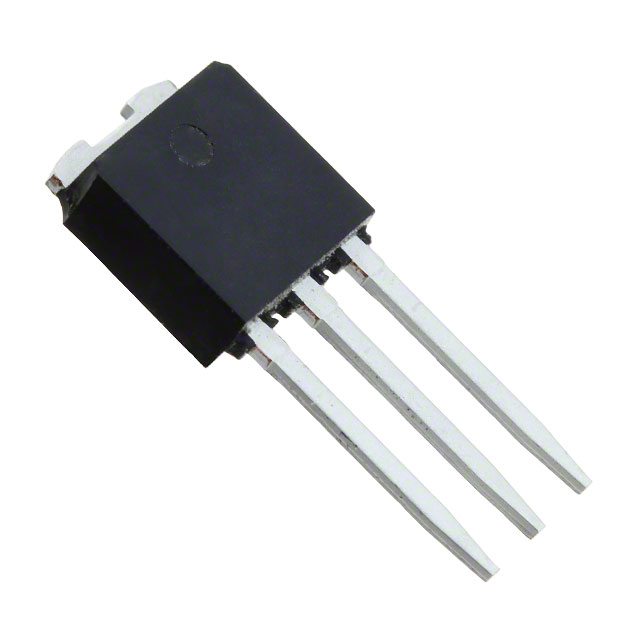

STMicroelectronics STD50NH02L-1
