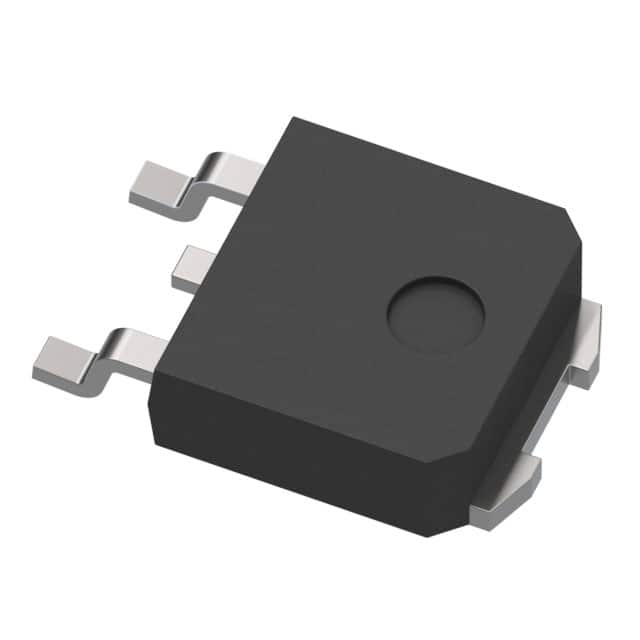

| Part Number | STD155N3LH6 | STD155N3H6 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 40A, 10V | 3mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 5 V | 62 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3800 pF @ 25 V | 3650 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 110W (Tc) | 110W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D-PAK (TO-252) | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
