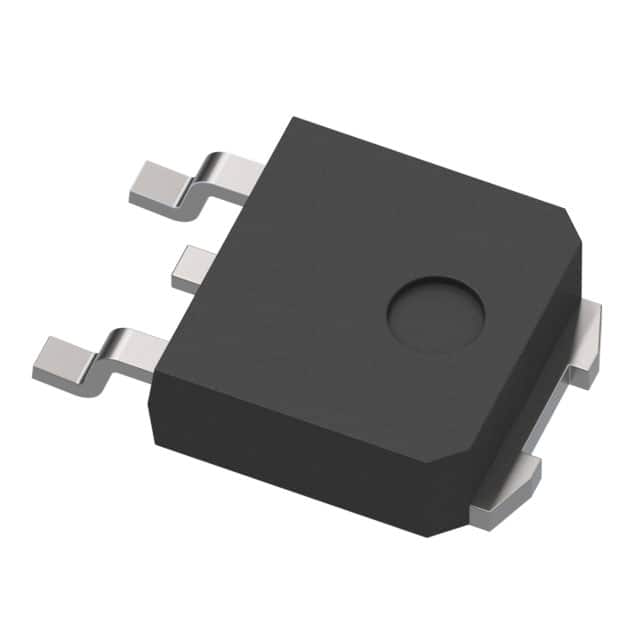

| Part Number | STD12N60DM6 | STD15N60DM6 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - |
| Rds On (Max) @ Id, Vgs | 390mOhm @ 5A, 10V | 338mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 4.75V @ 250µA | 4.75V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V | 15.3 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 508 pF @ 100 V | 607 pF @ 100 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 90W (Tc) | 110W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D-PAK (TO-252) | D-PAK (TO-252) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
