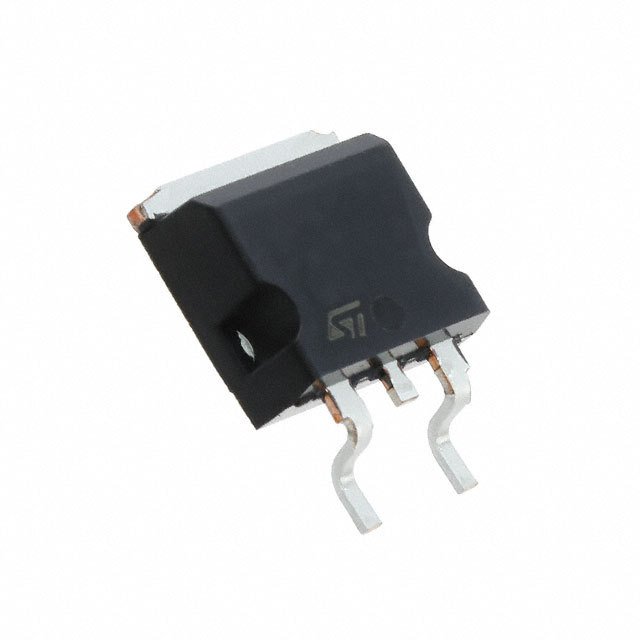

| Part Number | STB20N65M5 | STB21N65M5 | STB30N65M5 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) | 17A (Tc) | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 9A, 10V | 190mOhm @ 8.5A, 10V | 139mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V | 50 nC @ 10 V | 64 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1434 pF @ 100 V | 1950 pF @ 100 V | 2880 pF @ 100 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 130W (Tc) | 125W (Tc) | 140W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D²PAK (TO-263) | D2PAK | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
