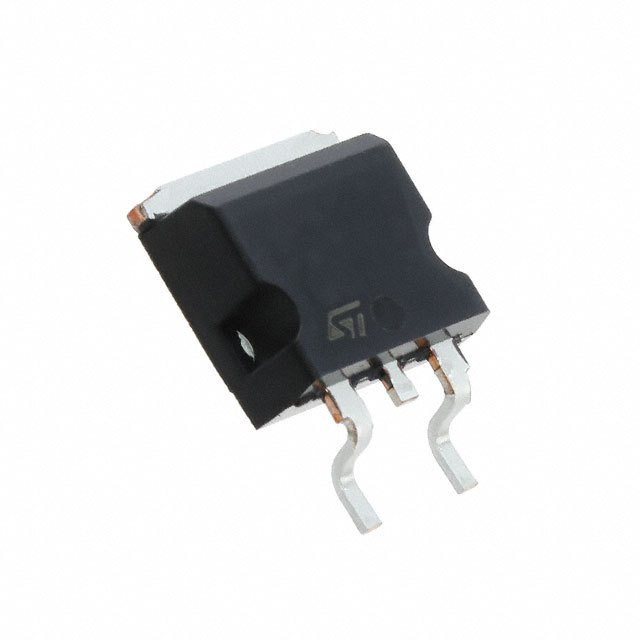

| Part Number | STB18NM60N | STB18NM60ND | STB12NM60N | STB13NM60N | STB15NM60N |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) | 13A (Tc) | 10A (Tc) | 11A (Tc) | 14A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 285mOhm @ 6.5A, 10V | 290mOhm @ 6.5A, 10V | 410mOhm @ 5A, 10V | 360mOhm @ 5.5A, 10V | 299mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 5V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V | 34 nC @ 10 V | 30.5 nC @ 10 V | 30 nC @ 10 V | 37 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 50 V | 1030 pF @ 50 V | 960 pF @ 50 V | 790 pF @ 50 V | 1250 pF @ 50 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 110W (Tc) | 110W (Tc) | 90W (Tc) | 90W (Tc) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D²PAK (TO-263) | D²PAK (TO-263) | D2PAK | D2PAK | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
