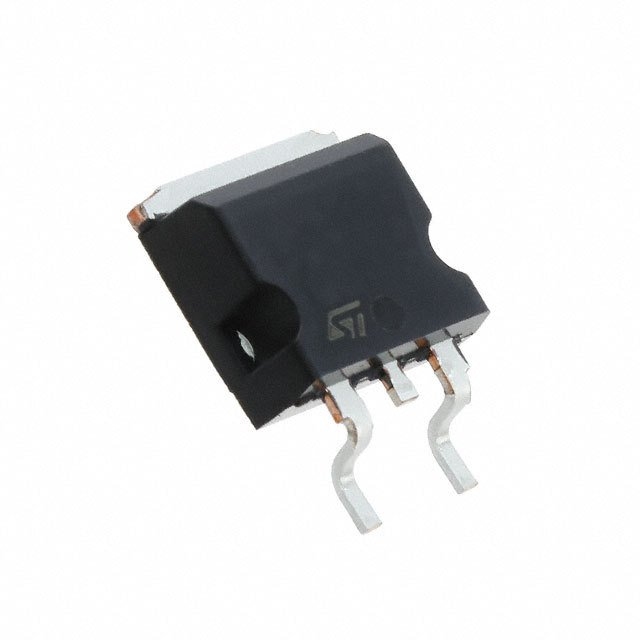

| Part Number | STB16N65M5 | STB18N65M5 | STB11N65M5 | STB15N65M5 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) | 15A (Tc) | 9A (Tc) | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 299mOhm @ 6A, 10V | 220mOhm @ 7.5A, 10V | 480mOhm @ 4.5A, 10V | 340mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V | 31 nC @ 10 V | 17 nC @ 10 V | 22 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250 pF @ 100 V | 1240 pF @ 100 V | 644 pF @ 100 V | 810 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 90W (Tc) | 110W (Tc) | 85W (Tc) | 85W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D²PAK (TO-263) | D²PAK (TO-263) | D²PAK (TO-263) | D²PAK (TO-263) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
