Please send RFQ , we will respond immediately.

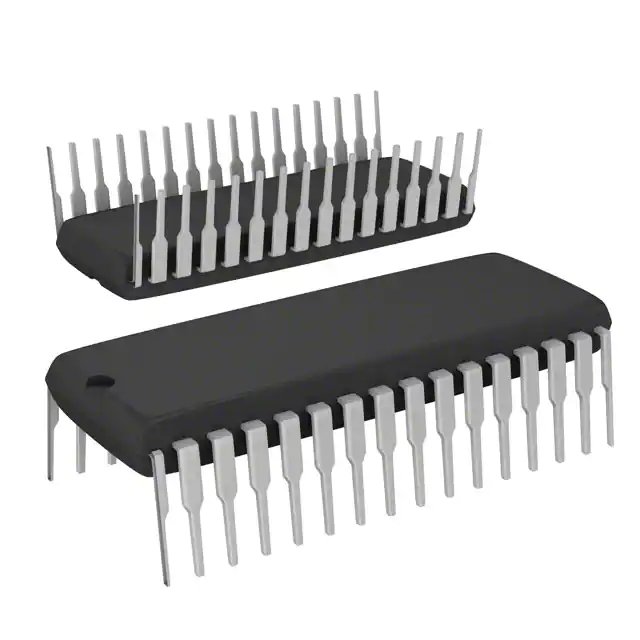

| Part Number | ST72F324K6B6 | ST72F324K6T6 | ST72F324LK6B6 | ST72F325K6B6 | ST72F324BK6B6 | ST72F324J6B6 | ST72F324K2B6 | ST72F324K4B6 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | ST7 | ST7 | ST7 | ST7 | ST7 | ST7 | ST7 | ST7 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz | 8MHz |
| Connectivity | SCI, SPI | SCI, SPI | SCI, SPI | I²C, SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI | SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 24 | 24 | 24 | 24 | 24 | 32 | 24 | 24 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 8KB (8K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - |
| RAM Size | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 384 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 5.5V | 3.8V ~ 5.5V | 2.85V ~ 3.6V | 3.8V ~ 5.5V | 3.8V ~ 5.5V | 3.8V ~ 5.5V | 3.8V ~ 5.5V | 3.8V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 6x10b | A/D 12x10b | A/D 12x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 32-SDIP (0.400", 10.16mm) | 32-LQFP | 32-SDIP (0.400", 10.16mm) | 32-SDIP (0.400", 10.16mm) | 32-SDIP (0.400", 10.16mm) | 42-SDIP (0.600", 15.24mm) | 32-SDIP (0.400", 10.16mm) | 32-SDIP (0.400", 10.16mm) |
| Supplier Device Package | - | - | - | - | - | - | - | - |
