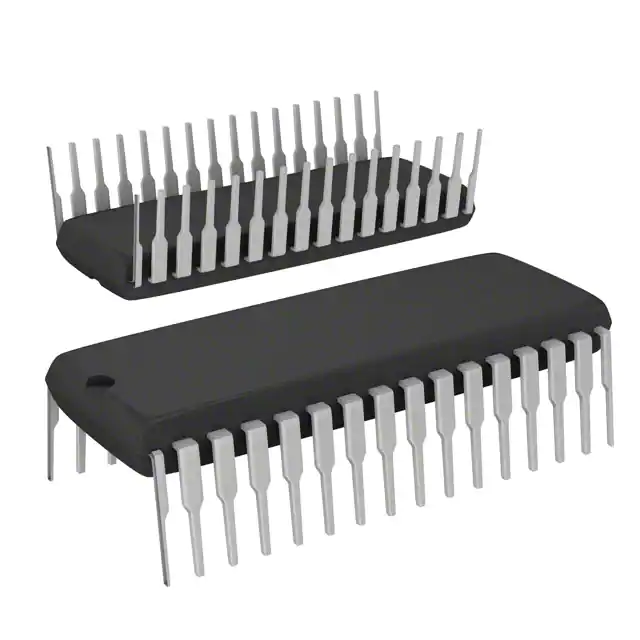

| Part Number | ST72F264G1B5 | ST72F264G2B5 | ST72F260G1B5 | ST72F262G1B5 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | ST7 | ST7 | ST7 | ST7 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16MHz | 16MHz | 16MHz | 16MHz |
| Connectivity | I²C, SCI, SPI | I²C, SCI, SPI | SPI | SPI |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 22 | 22 | 22 | 22 |
| Program Memory Size | 4KB (4K x 8) | 8KB (8K x 8) | 4KB (4K x 8) | 4KB (4K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 6x10b | A/D 6x10b | - | A/D 6x10b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -10°C ~ 85°C (TA) | -10°C ~ 85°C (TA) | -10°C ~ 85°C (TA) | -10°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 32-SDIP (0.400", 10.16mm) | 32-DIP (0.600", 15.24mm) | 32-SDIP (0.400", 10.16mm) | 32-SDIP (0.400", 10.16mm) |
| Supplier Device Package | - | - | - | - |
