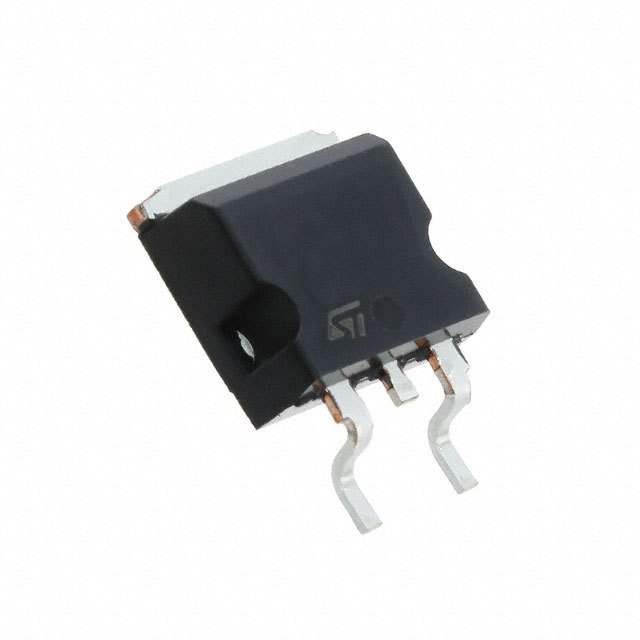

| Part Number | SPV1002D40 | SPV1002T40 | SPV1001D40 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 16A (DC) | 16A (DC) | 16A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 180 mV @ 16 A | 180 mV @ 16 A | 230 mV @ 16 A |
| Speed | - | - | - |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 1 µA @ 40 V | 1 µA @ 40 V | 1 µA @ 40 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) | TO-220 | D²PAK (TO-263) |
| Operating Temperature - Junction | -45°C ~ 175°C | -45°C ~ 175°C | -45°C ~ 175°C |
