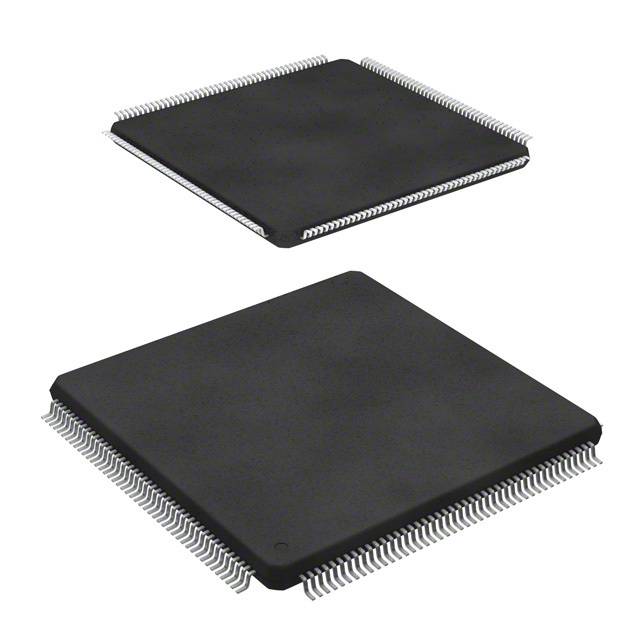

| Part Number | SPC564A80L7CFBR | SPC564A80L7COBR | SPC564A80L7CFBY | SPC564A80L7CFCR | SPC564A70L7CFBR | SPC564A80L7CFAR |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | e200z4 | e200z4 | e200z4 | e200z4 | e200z4 | e200z4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz | 120MHz | 80MHz | 120MHz | 150MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI | CANbus, EBI/EMI, LINbus, SCI, SPI | CANbus, EBI/EMI, LINbus, SCI, SPI | CANbus, EBI/EMI, LINbus, SCI, SPI | CANbus, EBI/EMI, LINbus, SCI, SPI | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 118 | 118 | 118 | 118 | 150 | 118 |
| Program Memory Size | 4MB (4M x 8) | 4MB (4M x 8) | 4MB (4M x 8) | 4MB (4M x 8) | 2MB (2M x 8) | 4MB (4M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 192K x 8 | 192K x 8 | 192K x 8 | 192K x 8 | 128K x 8 | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V | 1.14V ~ 1.32V | 1.14V ~ 1.32V | 1.14V ~ 1.32V | 1.14V ~ 1.32V | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b | A/D 34x12b | A/D 34x12b | A/D 34x12b | A/D 34x12b | A/D 34x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 176-LQFP | 176-LQFP | 176-LQFP | 176-LQFP | 176-LQFP | 176-LQFP |
| Supplier Device Package | 176-LQFP (24x24) | 176-LQFP (24x24) | 176-LQFP (24x24) | 176-LQFP (24x24) | 176-LQFP (24x24) | 176-LQFP (24x24) |
