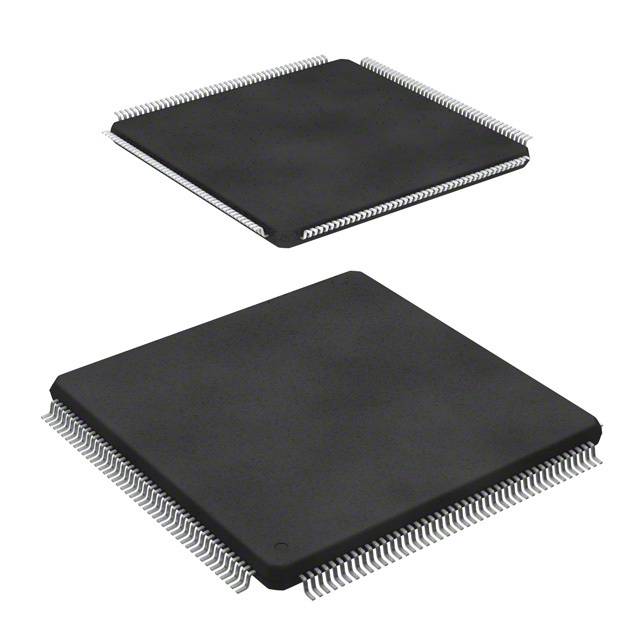

| Part Number | SPC560B60L7B6E0X | SPC560B64L7B6E0X | SPC560B60L7C6E0X | SPC560B60L3B6E0X | SPC560B60L5B6E0X |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | e200z0h | e200z0h | e200z0h | e200z0h | e200z0h |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 64MHz | 64MHz | 64MHz | 64MHz | 64MHz |
| Connectivity | CANbus, I²C, LINbus, SCI, SPI, UART/USART | CANbus, I²C, LINbus, SCI, SPI, UART/USART | CANbus, I²C, LINbus, SCI, SPI, UART/USART | CANbus, I²C, LINbus, SCI, SPI, UART/USART | CANbus, I²C, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 149 | 149 | 149 | 77 | 121 |
| Program Memory Size | 1MB (1M x 8) | 1.5MB (1.5M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 80K x 8 | 96K x 8 | 80K x 8 | 80K x 8 | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 53x10/12b | A/D 53x10/12b | A/D 53x10/12b | A/D 53x10/12b | A/D 53x10/12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 176-LQFP | 176-LQFP | 176-LQFP | 100-LQFP | 144-LQFP |
| Supplier Device Package | 176-LQFP (24x24) | 176-LQFP (24x24) | 176-LQFP (24x24) | 100-LQFP (14x14) | 144-LQFP (20x20) |
