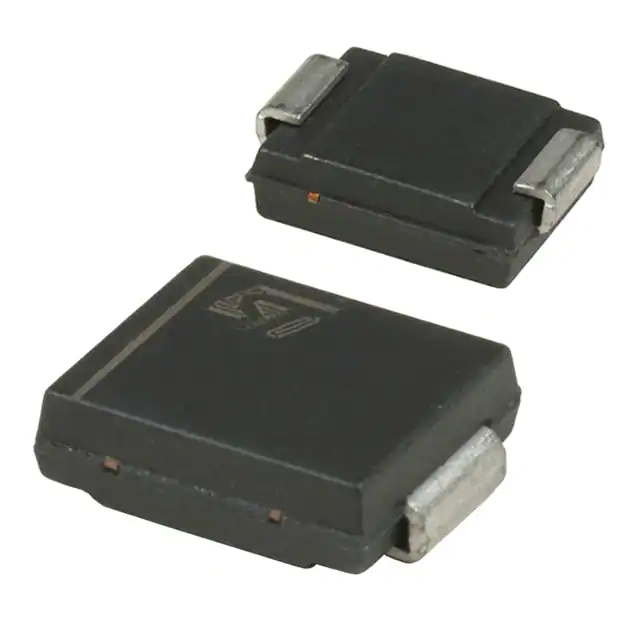

| Part Number | SMCJ5.0A-TR | SMCJ5.0CA-TR | SMCJ5.0A-HR | SMCJ5.0A-TP |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | Littelfuse Inc. | Micro Commercial Co |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 5V | 5V | 5V | 5V |
| Voltage - Breakdown (Min) | 6.4V | 6.4V | 6.4V | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 13.4V | 13.4V | 9.2V | 9.2V |
| Current - Peak Pulse (10/1000µs) | 746A (8/20µs) | 746A (8/20µs) | 163A | 163A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC | SMC | DO-214AB (SMCJ) | SMC (DO-214AB) |
