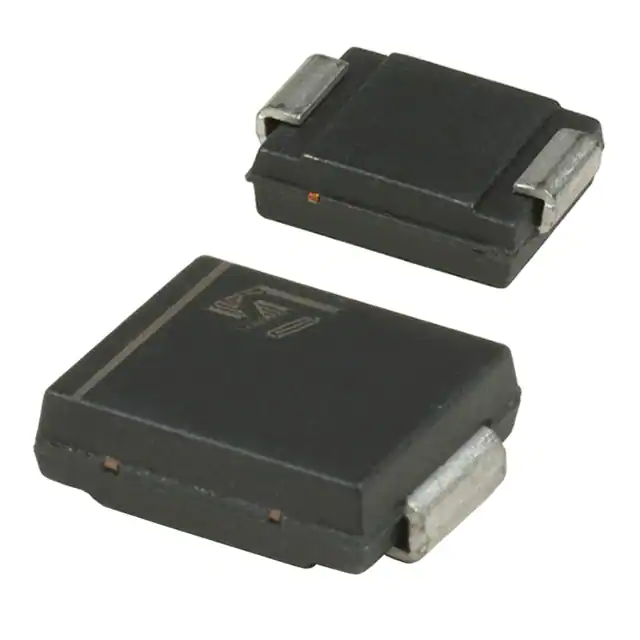

| Part Number | SMCJ20A-TR | SMCJ22A-TR | SMCJ20A-HR | SMCJ20A-TP |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | Littelfuse Inc. | Micro Commercial Co |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 22V | 20V | 20V |
| Voltage - Breakdown (Min) | 22.2V | 24.4V | 22.2V | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 42.8V | 48.3V | 32.4V | 32.4V |
| Current - Peak Pulse (10/1000µs) | 234A (8/20µs) | 207A (8/20µs) | 46.3A | 46.3A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) | SMC | DO-214AB (SMCJ) | SMC (DO-214AB) |
