Please send RFQ , we will respond immediately.

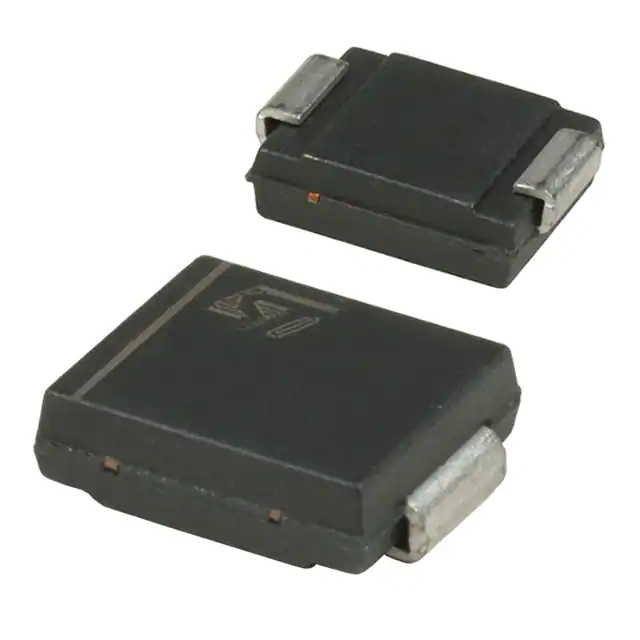

| Part Number | SMC30J36A | SMC30J36CA | SMC30J16A | SMC30J26A | SMC30J30A | SMC30J33A |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 36V | 36V | 16V | 26V | 30V | 33V |
| Voltage - Breakdown (Min) | 40V | 40V | 17.8V | 28.9V | 33.3V | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 58.1V | 58.1V | 26V | 42.1V | 48.4V | 53.3V |
| Current - Peak Pulse (10/1000µs) | 48.41A | 48.41A | 115A | 71A | 62A | 56A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) | SMC (DO-214AB) | SMC | SMC | SMC | SMC |
