Please send RFQ , we will respond immediately.
| Part Number | SMC30J30CA | SMC30J40CA | SMC30J33CA | SMC30J36CA | SMC30J10CA | SMC30J20CA | SMC30J30A |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 30V | 40V | 33V | 36V | 10V | 20V | 30V |
| Voltage - Breakdown (Min) | 33.3V | 44.4V | 36.7V | 40V | 11.1V | 22.2V | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 48.4V | 64.5V | 53.3V | 58.1V | 17V | 32.4V | 48.4V |
| Current - Peak Pulse (10/1000µs) | 62A | 43.5A | 56A | 48.41A | 176A | 93A | 62A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

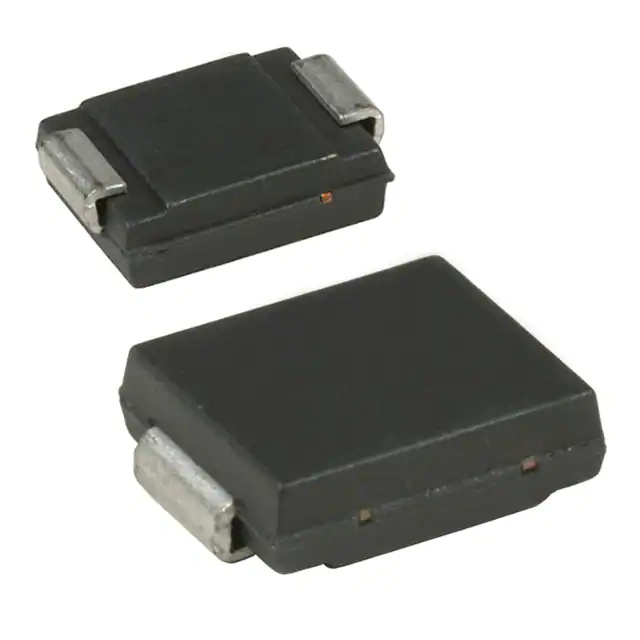

| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC | SMC (DO-214AB) | SMC | SMC (DO-214AB) | SMC | SMC | SMC |
