Please send RFQ , we will respond immediately.
| Part Number | SMC30J22CA | SMC30J24CA | SMC30J28CA | SMC30J26CA | SMC30J12CA | SMC30J20CA | SMC30J22A |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 22V | 24V | 28V | 26V | 12V | 20V | 22V |
| Voltage - Breakdown (Min) | 24.4V | 26.7V | 31.1V | 28.9V | 13.3V | 22.2V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V | 38.9V | 45.4V | 42.1V | 19.9V | 32.4V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 85A | 77A | 66A | 71A | 151A | 93A | 85A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

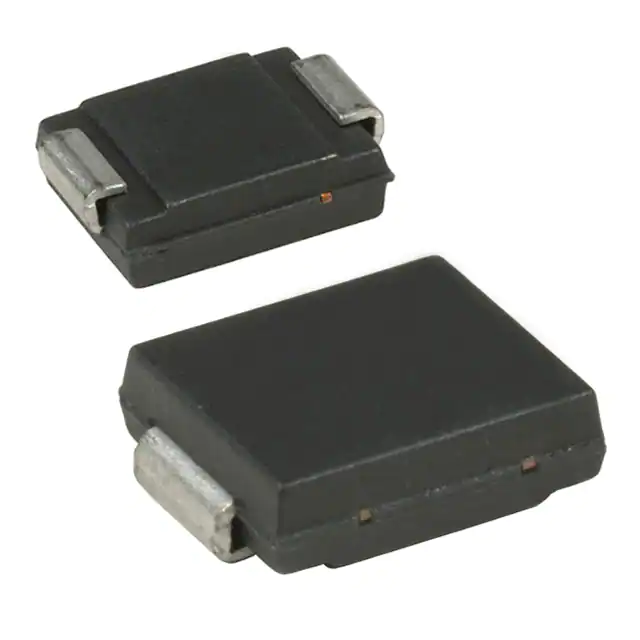

| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC | SMC | SMC | SMC | SMC | SMC | SMC |
