Please send RFQ , we will respond immediately.

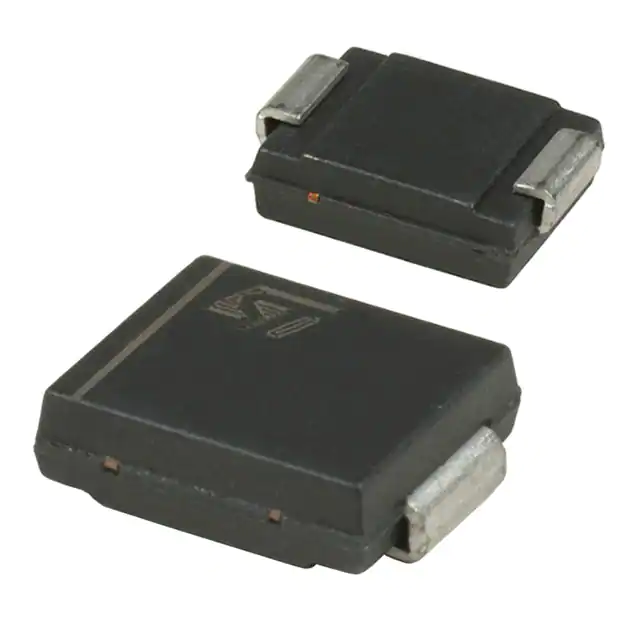

| Part Number | SMC30J16A | SMC30J36A | SMC30J18A | SMC30J26A | SMC30J16CA | SMC30J10A | SMC30J12A | SMC30J13A | SMC30J15A |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 16V | 36V | 18V | 26V | 16V | 10V | 12V | 13V | 15V |
| Voltage - Breakdown (Min) | 17.8V | 40V | 20V | 28.9V | 17.8V | 11.1V | 13.3V | 14.4V | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 26V | 58.1V | 29.2V | 42.1V | 26V | 17V | 19.9V | 21.5V | 24.4V |
| Current - Peak Pulse (10/1000µs) | 115A | 48.41A | 103A | 71A | 115A | 176A | 151A | 140A | 123A |
| Power - Peak Pulse | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) | 3000W (3kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC | SMC (DO-214AB) | SMC | SMC | SMC | SMC | SMC | SMC | SMC |
