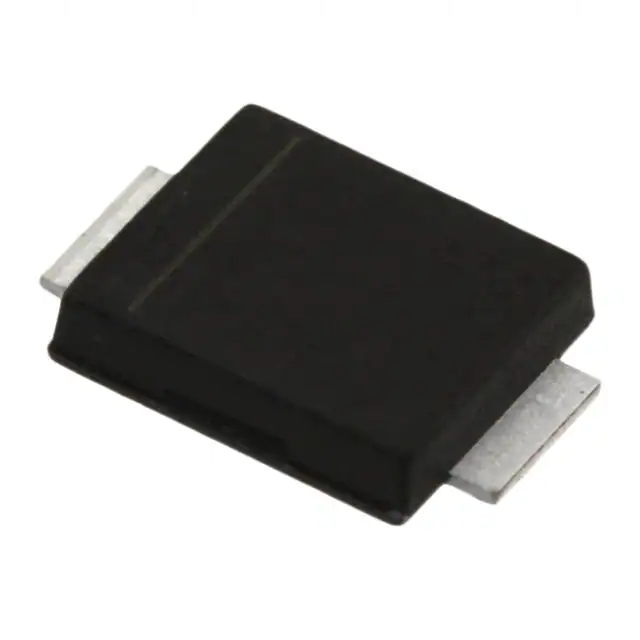

| Part Number | SMB6F70A | SMB6F70AY | SMB6F170A | SMB6F40A |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 70V | 70V | 170V | 40V (Max) |
| Voltage - Breakdown (Min) | 77.9V | 77.9V | 190V | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 113V | 113V | 275V | 84V |
| Current - Peak Pulse (10/1000µs) | 5.5A | 5.5A | 2.2A | 48A (8/20µs) |
| Power - Peak Pulse | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBflat | SMBflat | SMBflat | SMBflat |
