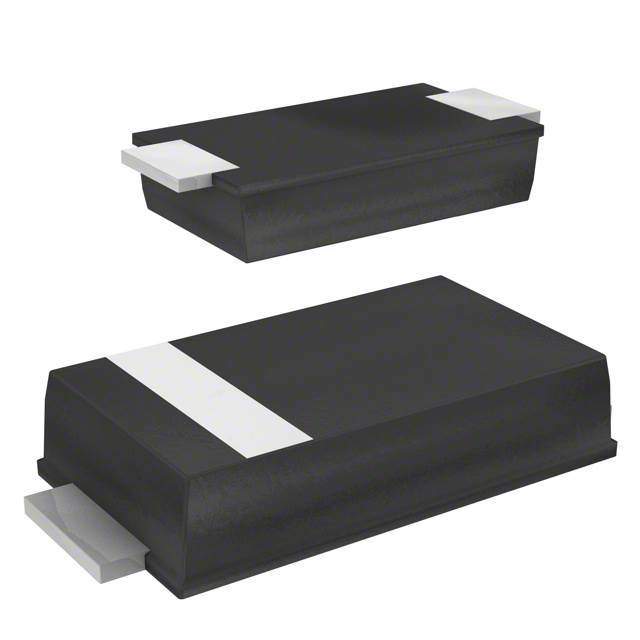

| Part Number | SMA6F20AY | SMA6F23AY | SMA6F70AY | SMA6F30AY | SMA6F24AY | SMA6F22AY | SMA6F26AY | SMA6F40AY | SMA6F28AY | SMA6F10AY | SMA6F20A | SMA6F20AH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 23V | 70V (Max) | 30V | 24V | 22V | 26V | 40V (Max) | 28V | 10V | 20V | 20V |
| Voltage - Breakdown (Min) | 22.2V | 25.7V | 77.9V | 33.2V | 26.7V | 24.4V | 28.9V | 44.4V | 31.1V | 11.1V | 22.2V | 22.4V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 37.8V | 113V | 48.4V | 38.9V | 35.5V | 42.1V | 84V | 45.4V | 17V | 32.4V | 32.5V |
| Current - Peak Pulse (10/1000µs) | 19.4A | 16.4A | 5.5A | 13A | 16A | 17.7A | 14.9A | 48A (8/20µs) | 13.8A | 37A | 19.4A | 18.5A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | General Purpose | Automotive | Automotive | General Purpose | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat | SMAflat | SMAflat | SMAflat | SMAflat | SMAflat | SMAflat | SMAflat | SMAflat | SMAflat | SMAflat | Thin SMA |
