STMicroelectronics-RBO40-40G-TR - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	20V
Voltage - Breakdown (Min):	24V
Voltage - Clamping (Max) @ Ipp:	40V
Current - Peak Pulse (10/1000µs):	20A, 37.5A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

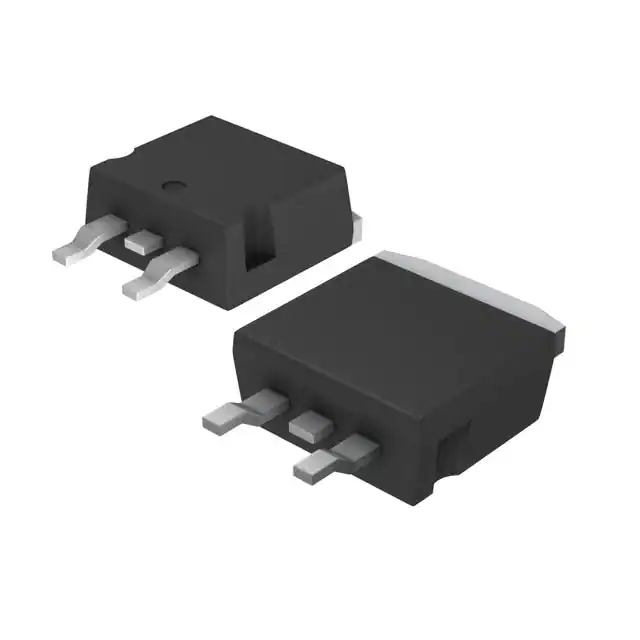

Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK

STMicroelectronics RBO40-40G-TR
