Please send RFQ , we will respond immediately.

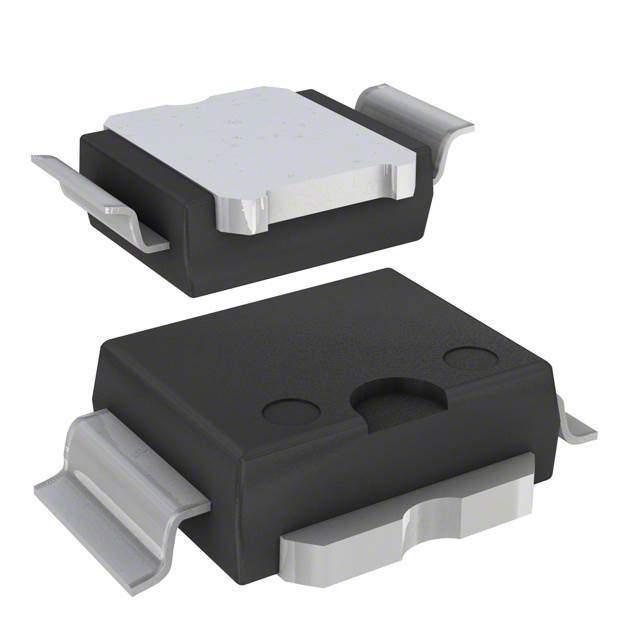

| Part Number | PD55008-E | PD55008S-E | PD55008L-E | PD54008-E | PD55003-E |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active | Active |
| Transistor Type | LDMOS | LDMOS | LDMOS | LDMOS | LDMOS |
| Frequency | 500MHz | 500MHz | 500MHz | 500MHz | 500MHz |
| Gain | 17dB | 17dB | 19dB | 11.5dB | 17dB |
| Voltage - Test | 12.5 V | 12.5 V | 12.5 V | 7.5 V | 12.5 V |
| Current Rating (Amps) | 4A | 4A | 5A | 5A | 2.5A |
| Noise Figure | - | - | - | - | - |
| Current - Test | 150 mA | 150 mA | 150 mA | 150 mA | 50 mA |
| Power - Output | 8W | 8W | 8W | 8W | 3W |
| Voltage - Rated | 40 V | 40 V | 40 V | 25 V | 40 V |
| Package / Case | PowerSO-10 Exposed Bottom Pad | PowerSO-10 Exposed Bottom Pad | 8-PowerVDFN | PowerSO-10 Exposed Bottom Pad | PowerSO-10 Exposed Bottom Pad |
| Supplier Device Package | 10-PowerSO | PowerSO-10RF (Straight Lead) | PowerFLAT™ (5x5) | 10-PowerSO | 10-PowerSO |
