Please send RFQ , we will respond immediately.

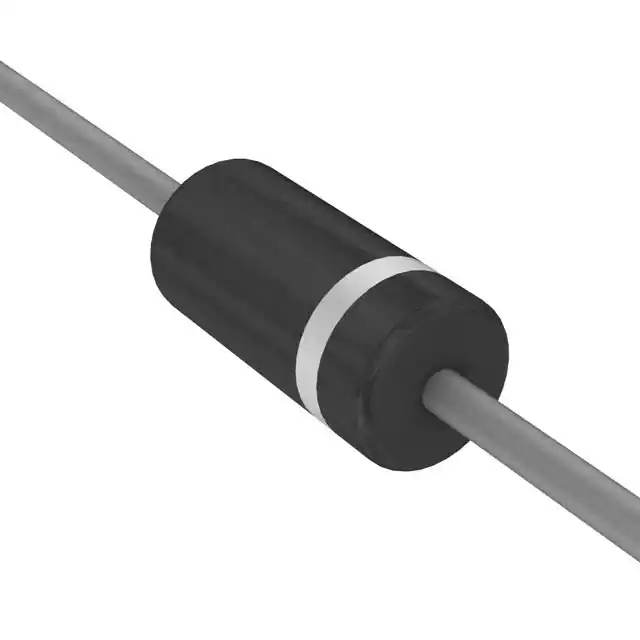

| Part Number | P6KE30A | P6KE33A | P6KE30AG | P6KE30CA | P6KE350A | P6KE30AH | P6KE30C | P6KE30 | P6KE300 | P6KE300A |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | Littelfuse Inc. | onsemi | STMicroelectronics | Littelfuse Inc. | Taiwan Semiconductor Corporation | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | 1 | - | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 26V | 28.2V | 25.6V | 26V | 300V | 25.6V | 24.3V | 24.3V | 243V | 256V |
| Voltage - Breakdown (Min) | 28.5V | 31.4V | 28.5V | 28.5V | 332V | 28.5V | 27V | 27V | 270V | 285V |
| Voltage - Clamping (Max) @ Ipp | 53.5V | 45.7V | 41.4V | 53.5V | 482V | 41.4V | 43.5V | 43.5V | 430V | 529V |
| Current - Peak Pulse (10/1000µs) | 75A (8/20µs) | 13.3A | 14.4A (8/20µs) | 75A (8/20µs) | 1.3A | 15A | 14A | 14A | 1.4A | 7.6A (8/20µs) |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | Automotive | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 1075pF @ 1MHz | - | - | 537.5pF @ 1MHz | - | - | - | - | - | 290pF @ 1MHz |
| Operating Temperature | - | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | T-18, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 (DO-204AC) | DO-204AC (DO-15) | Axial | DO-15 (DO-204AC) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO15/DO204AC | DO15/DO204AC | DO15/DO204AC | DO-15 (DO-204AC) |
