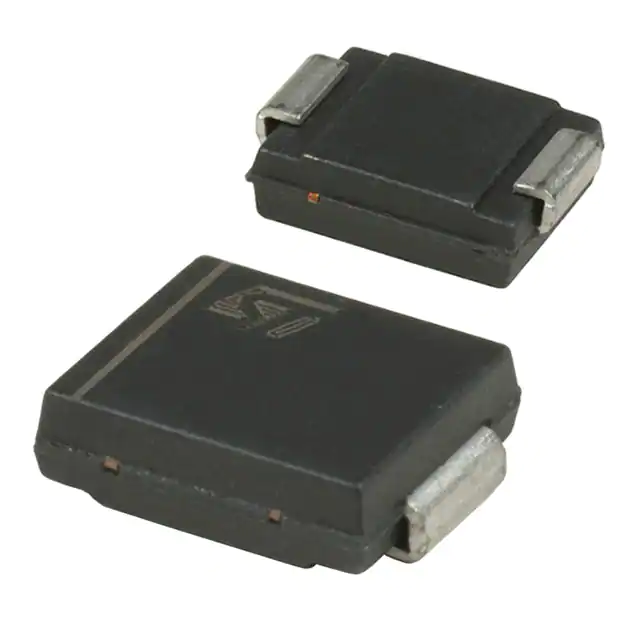

| Part Number | LNBTVS4-221S | LNBTVS4-222S | LNBTVS6-221S | LNBTVS4-220S | LNBTVS4-221 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 20V | 20V | 20V | 20V |
| Voltage - Breakdown (Min) | 22V | 22V | 22V | 22V | 22V |
| Voltage - Clamping (Max) @ Ipp | 32V | 30V | 32V | 35V | 32V |
| Current - Peak Pulse (10/1000µs) | 334A (8/20µs) | 334A (8/20µs) | 500A (8/20µs) | 334A (8/20µs) | 331A (8/20µs) |
| Power - Peak Pulse | 22500W (22.5kW) | 22500W (22.5kW) | 22500W (22.5kW) | 22500W (22.5kW) | 2000W (2kW) |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-201AA, DO-27, Axial |
| Supplier Device Package | SMC | SMC | SMC | SMC | DO-201 |
