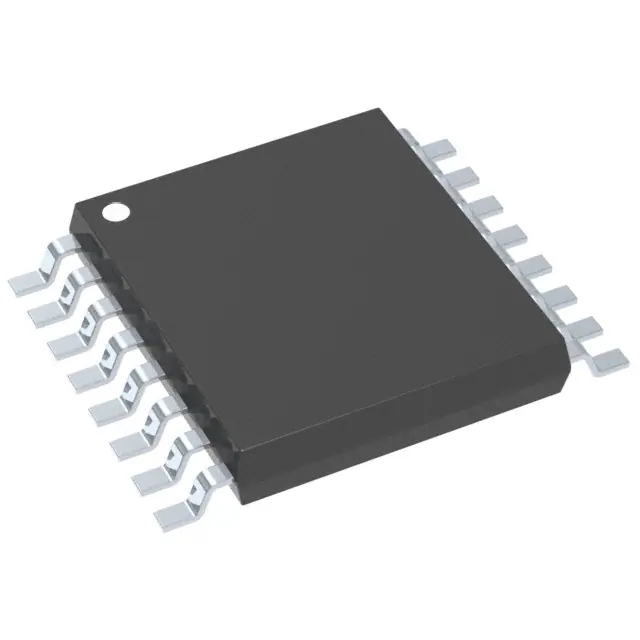

| Part Number | LED6000PHR | LED6000PHTR | LED5000PHR |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | - | - | 1 |
| Voltage - Supply (Min) | 4.5V | 4.5V | 5.5V |
| Voltage - Supply (Max) | 61V | 61V | 48V |
| Voltage - Output | - | - | - |
| Current - Output / Channel | 3A | 3A | 3A |
| Frequency | 250kHz ~ 1.5MHz | 250kHz ~ 1.5MHz | 850kHz |
| Dimming | PWM | PWM | PWM |
| Applications | - | - | Lighting, Signage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 16-HTSSOP | 16-HTSSOP | 8-HSOP |
