| Part Number | LDLN025PU18R | LDLN025PU28R | LDLN015PU18R | LDLN025PU12R |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 2.8V | 1.8V | 1.2V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.25V @ 250mA | 0.25V @ 250mA | - | 0.25V @ 250mA |
| Current - Output | 250mA | 250mA | 150mA | 250mA |
| Current - Quiescent (Iq) | 25 µA | 25 µA | 60 µA | 25 µA |
| Current - Supply (Max) | 425 µA | 425 µA | 120 µA | 425 µA |
| PSRR | 80dB ~ 60dB (100Hz ~ 100KHz) | 80dB ~ 60dB (100Hz ~ 100KHz) | 92dB ~ 50dB (1kHz ~ 100kHz) | 80dB ~ 60dB (100Hz ~ 100KHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit, Soft Start | Over Current, Over Temperature, Short Circuit, Soft Start | Over Current, Over Temperature | Over Current, Over Temperature, Short Circuit, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

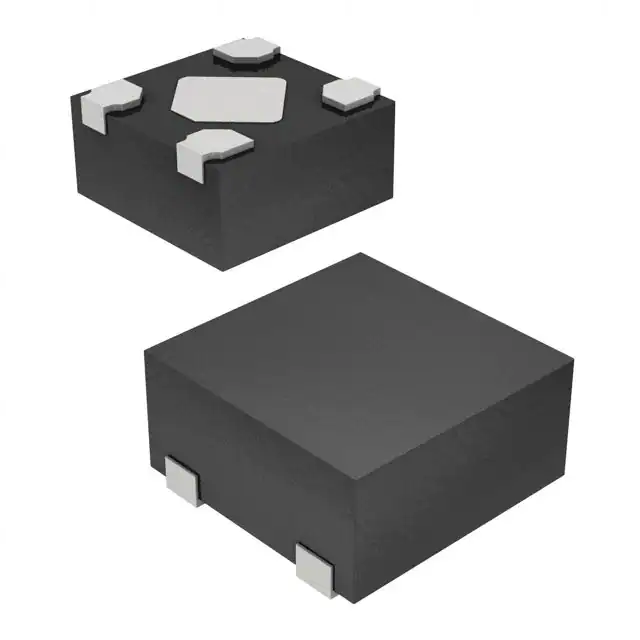

| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 6-UFDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-DFN (1x1) | 4-DFN (1x1) | 6-DFN (2x2) | 4-DFN (1x1) |
