| Part Number | LDLN025J25R | LDLN025J28R | LDLN025J29R | LDLN025M25R | LDLN025J275R | LDLN025J285R |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.8V | 2.9V | 2.5V | 2.75V | 2.85V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.2V @ 250mA | 0.2V @ 250mA | 0.2V @ 250mA | 0.2V @ 250mA | 0.2V @ 250mA | 0.2V @ 250mA |
| Current - Output | 250mA | 250mA | 250mA | 250mA | 250mA | 250mA |
| Current - Quiescent (Iq) | 25 µA | 25 µA | 25 µA | 25 µA | 25 µA | 25 µA |
| Current - Supply (Max) | 425 µA | 425 µA | 425 µA | 425 µA | 425 µA | 425 µA |
| PSRR | 80dB ~ 60dB (100Hz ~ 100KHz) | 80dB ~ 60dB (100Hz ~ 100KHz) | 80dB ~ 60dB (100Hz ~ 100KHz) | 80dB ~ 60dB (100Hz ~ 100KHz) | 80dB ~ 60dB (100Hz ~ 100KHz) | 80dB ~ 60dB (100Hz ~ 100KHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit, Soft Start | Over Current, Over Temperature, Short Circuit, Soft Start | Over Current, Over Temperature, Short Circuit, Soft Start | Over Current, Over Temperature, Short Circuit, Soft Start | Over Current, Over Temperature, Short Circuit, Soft Start | Over Current, Over Temperature, Short Circuit, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

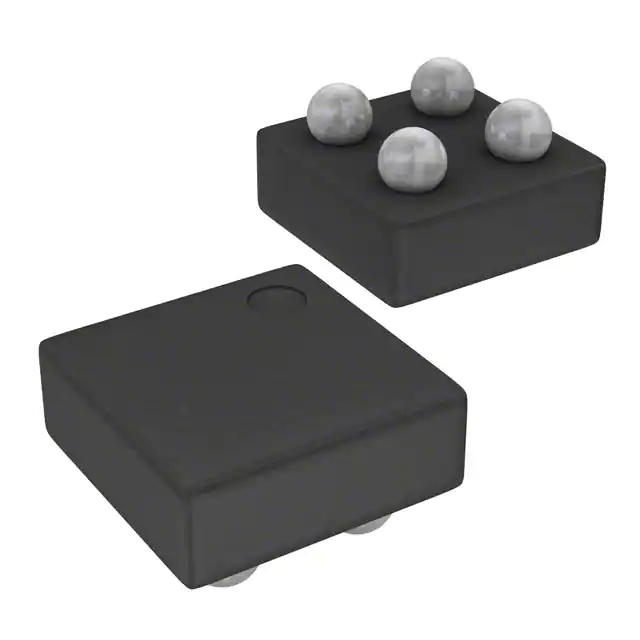

| Package / Case | 4-XFBGA, FCBGA | 4-XFBGA, FCBGA | 4-XFBGA, FCBGA | SC-74A, SOT-753 | 4-XFBGA, FCBGA | 4-XFBGA, FCBGA |
| Supplier Device Package | 4-FlipChip | 4-FlipChip | 4-FlipChip (0.63x0.63) | SOT-23-5 | 4-FlipChip (0.63x0.63) | 4-FlipChip (0.63x0.63) |
