| Part Number | LDL112PV12R | LDL112PV15R | LDL112PV18R | LDL112PU12R | LDL112PV10R |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.5V | 1.8V | 1.2V | 1V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 1.2A | 0.6V @ 1.2A | 0.6V @ 1.2A | 0.6V @ 1.2A | 0.6V @ 1.2A |
| Current - Output | 1.2A | 1.2A | 1.2A | 1.2A | 1.2A |
| Current - Quiescent (Iq) | 70 µA | 70 µA | 70 µA | 70 µA | 70 µA |
| Current - Supply (Max) | 400 µA | 400 µA | 400 µA | 400 µA | 400 µA |
| PSRR | 57dB (1kHz) | 57dB (1kHz) | 57dB (1kHz) | 57dB (1kHz) | 57dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Current | Over Current, Over Temperature, Reverse Current | Over Current, Over Temperature, Reverse Current | Over Current, Over Temperature, Reverse Current | Over Current, Over Temperature, Reverse Current |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

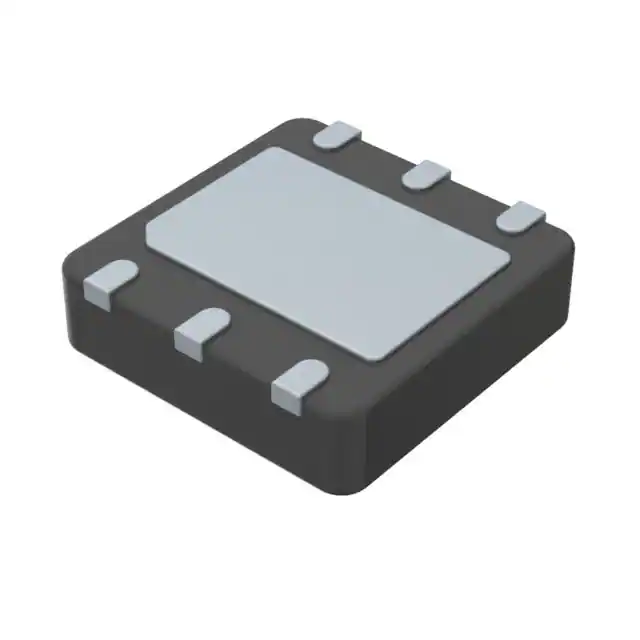

| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (3x3) | 6-DFN (3x3) | 6-DFN (3x3) | 6-DFN (2x2) | 6-DFN (3x3) |
