| Part Number | LDK130PU12R | LDK130PU32R | LDK130PU18R | LDK130PU15R | LDK120PU12R | LDK130PU10R |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 3.2V | 1.8V | 1.5V | 1.2V | 1V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.4V @ 300mA | 0.4V @ 300mA | 0.4V @ 300mA | 0.4V @ 300mA | 0.3V @ 200mA | 0.4V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 200mA | 300mA |
| Current - Quiescent (Iq) | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA |
| Current - Supply (Max) | 120 µA | 120 µA | 120 µA | 120 µA | 100 µA | 120 µA |
| PSRR | 55dB (120Hz ~ 10kHz) | 55dB (120Hz ~ 10kHz) | 55dB (120Hz ~ 10kHz) | 55dB (120Hz ~ 10kHz) | 55dB (120Hz ~ 10kHz) | 55dB (120Hz ~ 10kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

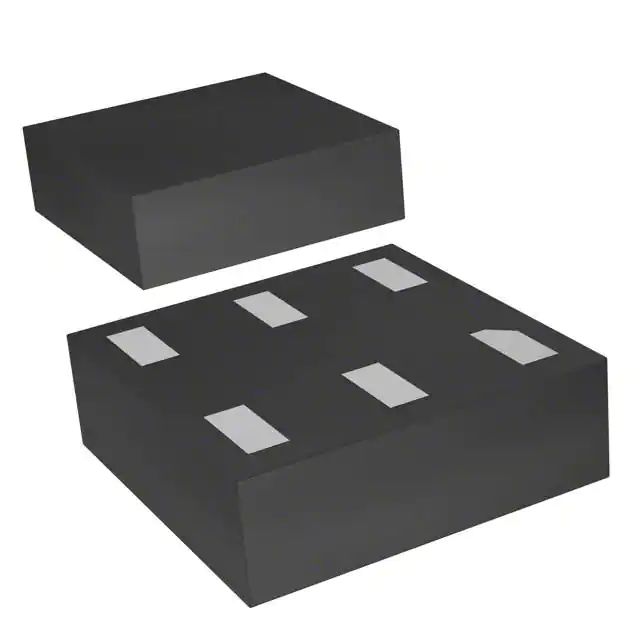

| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN | 6-XFDFN |
| Supplier Device Package | 6-DFN (1.2x1.3) | 6-DFN (1.2x1.3) | 6-DFN (1.2x1.3) | 6-DFN (1.2x1.3) | 6-DFN (1.2x1.3) | 6-DFN (1.2x1.3) |
