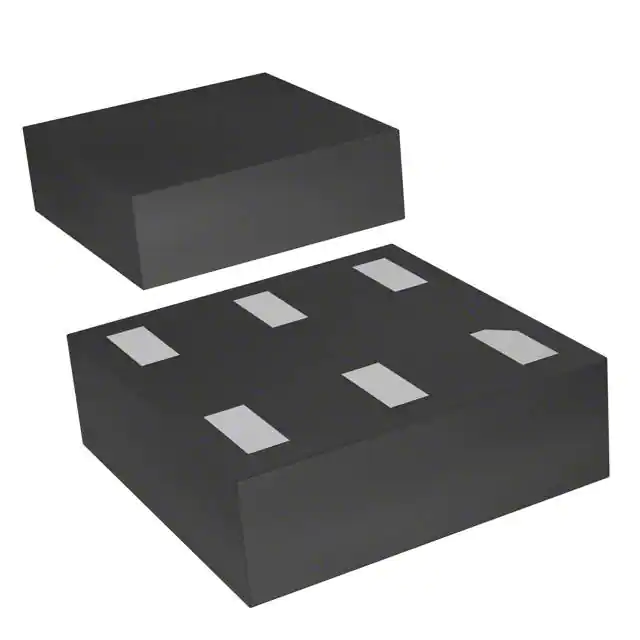

| Part Number | LDK120PU-R | LDK220PU-R | LDK130PU-R |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 13.2V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | - | 0.8V |
| Voltage - Output (Max) | 5.2V | - | 5.1V |
| Voltage Dropout (Max) | 0.3V @ 200mA | 0.35V @ 200mA | 0.4V @ 300mA |
| Current - Output | 200mA | 200mA | 300mA |
| Current - Quiescent (Iq) | 60 µA | 90 µA | 60 µA |
| Current - Supply (Max) | 100 µA | 100 µA | 120 µA |
| PSRR | 55dB (120Hz ~ 10kHz) | 60dB ~ 45dB (120Hz ~ 10kHz) | 55dB (120Hz ~ 10kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN |
| Supplier Device Package | 6-DFN (1.2x1.3) | 6-DFN (1.2x1.3) | 6-DFN (1.2x1.3) |
