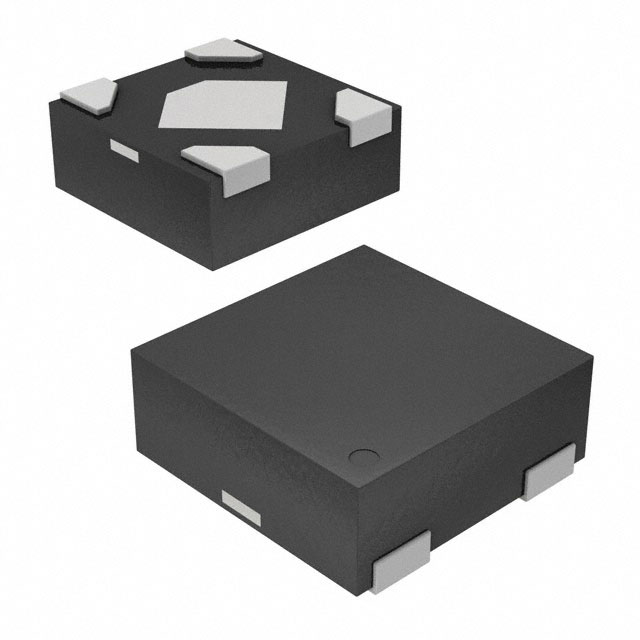

| Part Number | LD59030DTPU25R | LD59030DTPU28R |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.23V @ 300mA | 0.23V @ 300mA |
| Current - Output | 300mA | 300mA |
| Current - Quiescent (Iq) | 40 µA | 40 µA |
| Current - Supply (Max) | 305 µA | 305 µA |
| PSRR | 75dB ~ 55dB (1kHz ~ 100kHz) | 75dB ~ 55dB (1kHz ~ 100kHz) |
| Control Features | Enable, Soft Start | Enable, Soft Start |
| Protection Features | Over Temperature | Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-DFN (1x1) | 4-DFN (1x1) |
