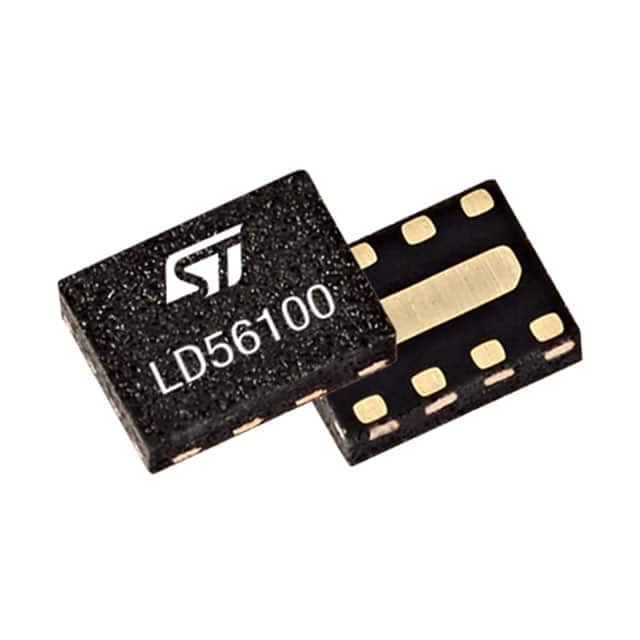

| Part Number | LD56100DPU18R | LD56100DPU28R |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 2.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.285V @ 1A | 0.175V @ 1A |
| Current - Output | 1A | 1A |
| Current - Quiescent (Iq) | 155 µA | 155 µA |
| Current - Supply (Max) | - | - |
| PSRR | 70dB ~ 55dB (1kHz ~ 100kHz) | 70dB ~ 55dB (1kHz ~ 100kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (1.6x1.2) | 8-DFN (1.6x1.2) |
