| Part Number | LD3980PU08R | LD3980PU18R |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | - | 0.15V @ 300mA |
| Current - Output | 300mA | 300mA |
| Current - Quiescent (Iq) | 110 µA | 110 µA |
| Current - Supply (Max) | 130 µA | 130 µA |
| PSRR | 60dB ~ 58dB (1kHz ~ 10kHz) | 60dB ~ 58dB (1kHz ~ 10kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |

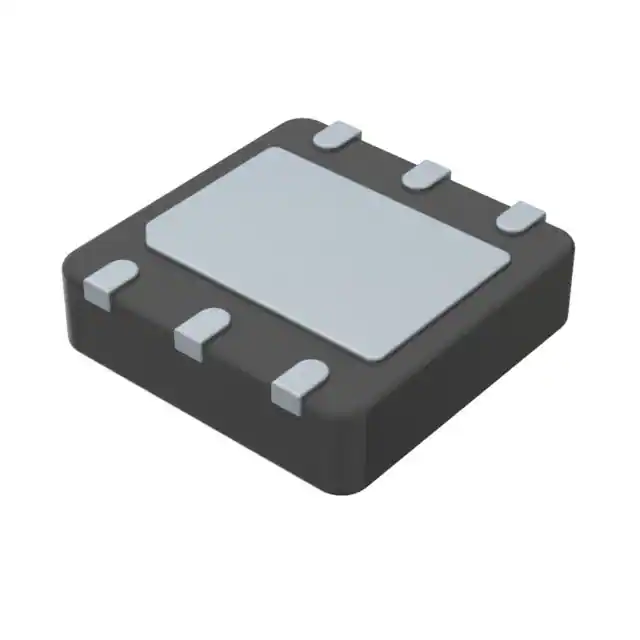

| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (3x3) | 6-DFN (3x3) |
