| Part Number | LD39115J14R | LD39115J18R | LD39115J15R | LD39115J10R | LD39115J12R |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.4V | 1.8V | 1.5V | 1V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.11V @ 100mA | 0.11V @ 100mA | - | - |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA |
| Current - Supply (Max) | 70 µA | 70 µA | 70 µA | 70 µA | 70 µA |
| PSRR | 74dB ~ 67dB (1kHz ~ 10kHz) | 74dB ~ 67dB (1kHz ~ 10kHz) | 74dB ~ 67dB (1kHz ~ 10kHz) | 74dB ~ 67dB (1kHz ~ 10kHz) | 74dB ~ 67dB (1kHz ~ 10kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

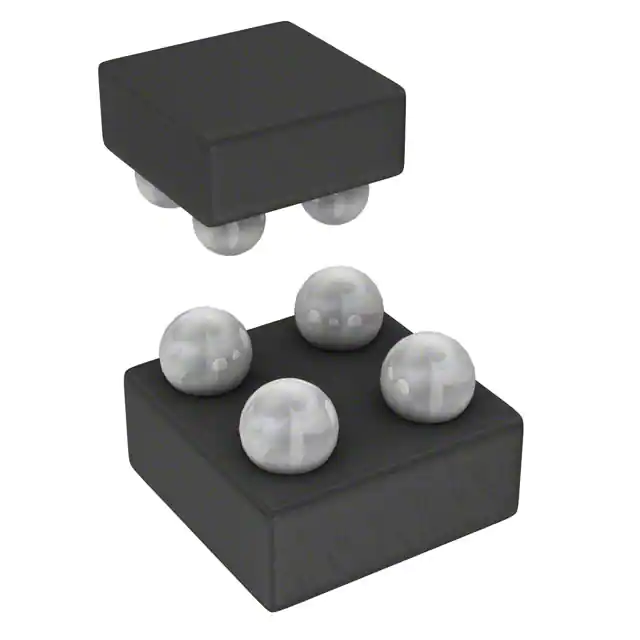

| Package / Case | 4-UFBGA, FCBGA | 4-UFBGA, FCBGA | 4-UFBGA, FCBGA | 4-UFBGA, FCBGA | 4-UFBGA, FCBGA |
| Supplier Device Package | 4-Flipchip (0.79x0.79) | 4-FlipChip | 4-Flipchip (0.79x0.79) | 4-Flipchip (0.79x0.79) | 4-Flipchip (0.79x0.79) |
