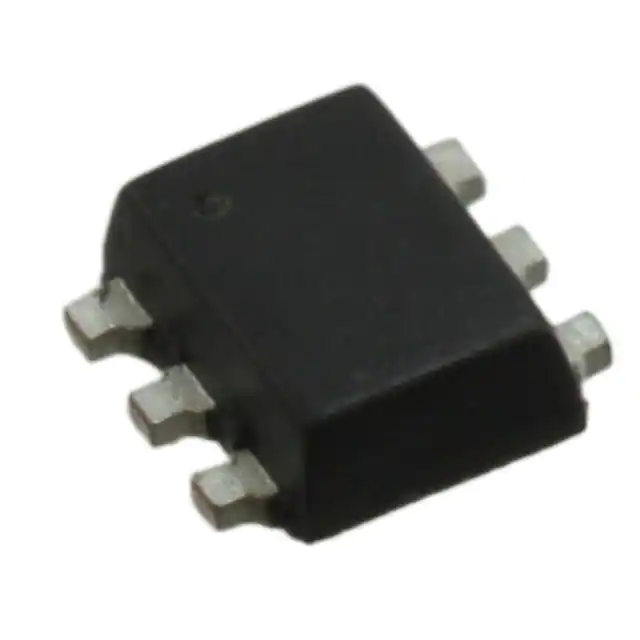

| Part Number | LD39015XG12R | LD39015XG10R |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 1V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.1V @ 100mA | 0.1V @ 100mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 50 µA | 50 µA |
| Current - Supply (Max) | 70 µA | 70 µA |
| PSRR | 65dB ~ 62dB (1kHz ~ 10kHz) | 65dB ~ 62dB (1kHz ~ 10kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 | SOT-666 |
