STMicroelectronics-L99SD01TR-E - PMIC - Full, Half-Bridge Drivers Product Specifications and Latest Quotes

Output Configuration:	Half Bridge
Applications:	Solenoids
Interface:	I²C, PWM
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	150mOhm LS (Max), 150mOhm HS (Max)
Current - Output / Channel:	14A
Current - Peak Output:	-
Voltage - Supply:	6V ~ 28V
Voltage - Load:	45V (Max)
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Status Flag
Fault Protection:	Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO
Mounting Type:	Surface Mount

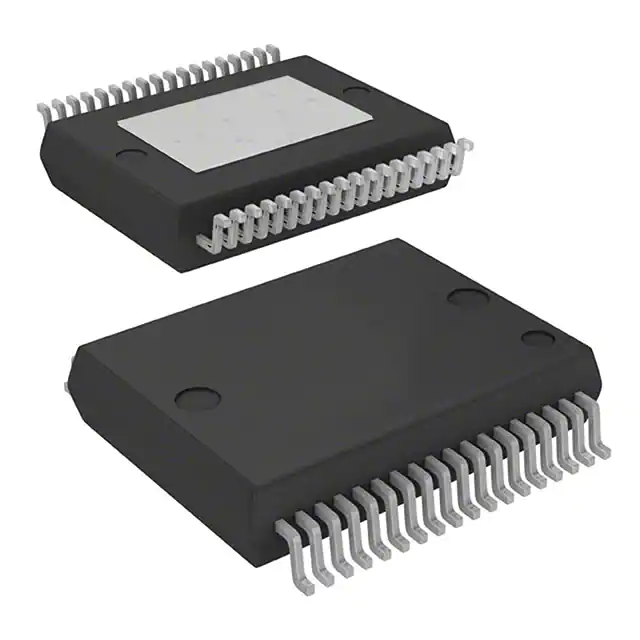

Package / Case:	36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package:	PowerSSO-36 EPD

STMicroelectronics L99SD01TR-E
