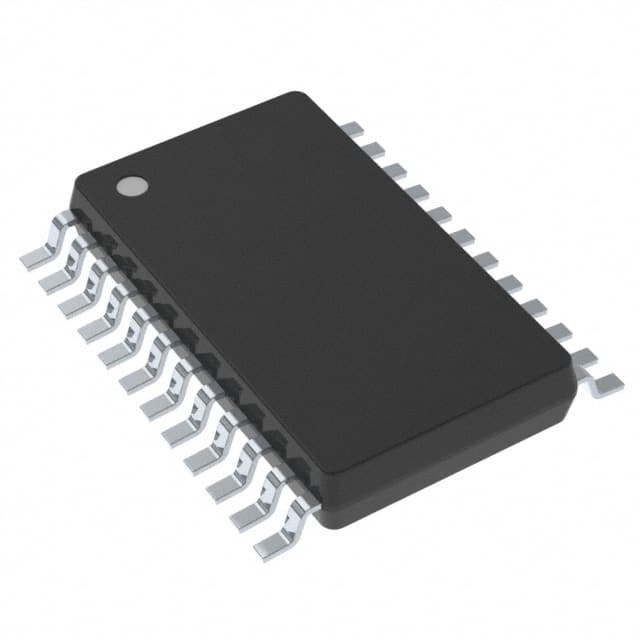

| Part Number | L9959S-TR-D | L9959U-TR-D | L9959T-TR-D |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Applications | General Purpose | General Purpose | General Purpose |
| Interface | SPI | SPI | SPI |
| Load Type | Inductive, Capacitive, Resistive | Inductive, Capacitive, Resistive | Inductive, Capacitive, Resistive |
| Technology | PMOS | PMOS | PMOS |
| Rds On (Typ) | - | - | - |
| Current - Output / Channel | 3A | 3A | 3A |
| Current - Peak Output | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 5V ~ 28V | 5V ~ 28V | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | - | - | - |
| Fault Protection | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-PowerBSOP (0.295", 7.50mm Width) | 36-PowerFSOP (0.295", 7.50mm Width) | 36-PowerFSOP (0.295", 7.50mm Width) |
| Supplier Device Package | PowerSSO-24 | PowerSSO-36 EPD | PowerSSO-36 EPD |
