| Part Number | L9825 | L9826 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete |
| Switch Type | Latched Driver | Latched Driver |
| Number of Outputs | 8 | 8 |
| Ratio - Input:Output | 1:8 | 1:8 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | SPI | SPI |
| Voltage - Load | 45V (Max) | 45V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Output (Max) | 1A | 450mA |
| Rds On (Typ) | 750mOhm (Max) | 1.5Ohm |
| Input Type | - | - |
| Features | Status Flag | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

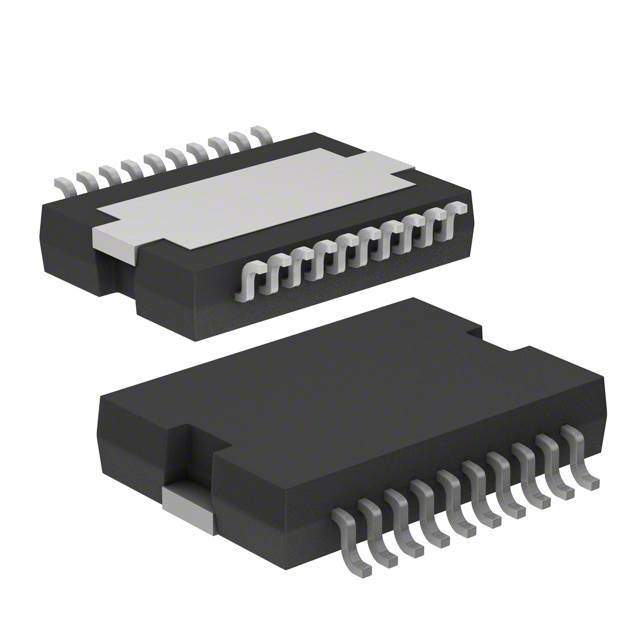

| Supplier Device Package | PowerSO-20 | 20-SO |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | 20-SOIC (0.295", 7.50mm Width) |
