| Part Number | L7915ACV-DG | L7915CV-DG | L7905ACV-DG | L7912ACV-DG |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Negative | Negative | Negative | Negative |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | -35V | -35V | -35V | -35V |
| Voltage - Output (Min/Fixed) | -15V | -15V | -5V | -12V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 1.1V @ 1A (Typ) | 1.1V @ 1A (Typ) | 1.4V @ 1A (Typ) | 1.1V @ 1A (Typ) |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 3 mA | 3 mA | 3 mA | 3 mA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

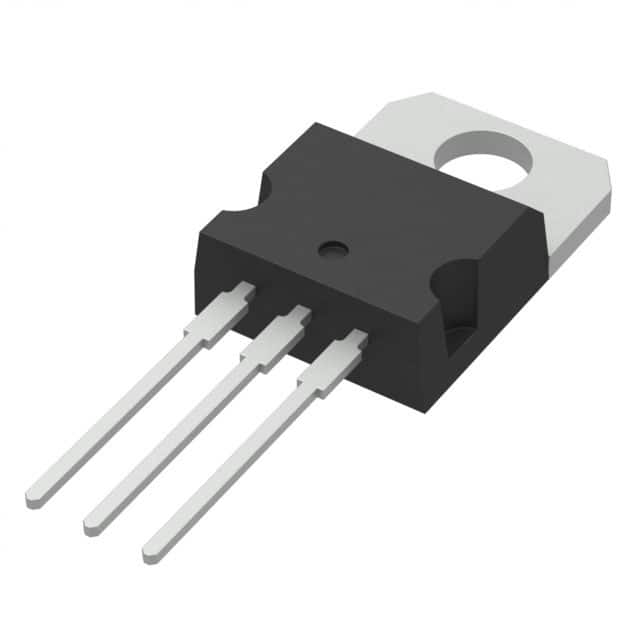

| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220 | TO-220 | TO-220 | TO-220 |
