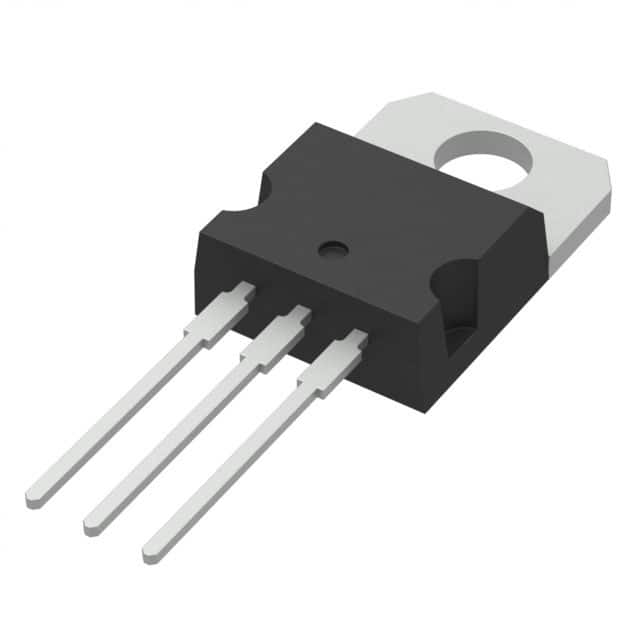

| Part Number | L78S75CV-DG | L78S05CV-DG | L78S15CV-DG |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 35V | 35V | 35V |
| Voltage - Output (Min/Fixed) | 7.5V | 5V | 15V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | - | - | - |
| Current - Output | 2A | 2A | 2A |
| Current - Quiescent (Iq) | 8 mA | 8 mA | 8 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | 48dB (120Hz) | 54dB (120Hz) | 46dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 150°C | 0°C ~ 150°C | 0°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220 | TO-220 | TO-220 |
