Please send RFQ , we will respond immediately.

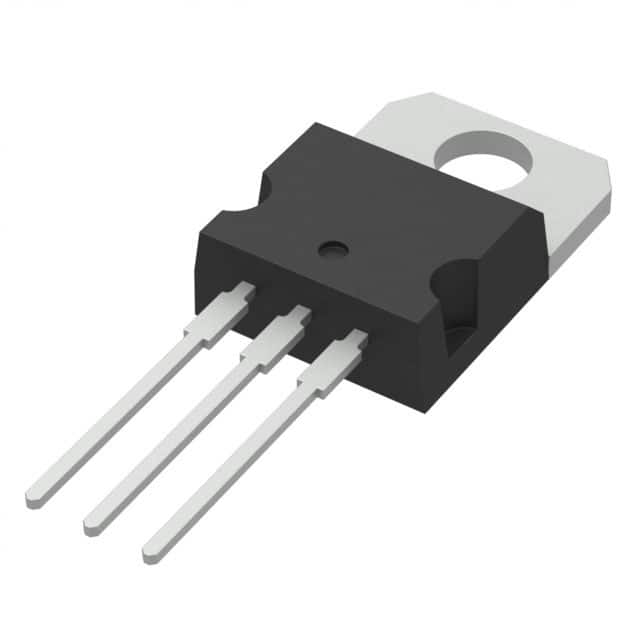

| Part Number | L78M12CV-DG | L78M15CV-DG | L78S12CV-DG |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 35V | 35V | 35V |
| Voltage - Output (Min/Fixed) | 12V | 15V | 12V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | - | - | - |
| Current - Output | 500mA | 500mA | 2A |
| Current - Quiescent (Iq) | 6 mA | 6 mA | 8 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | 55dB (120Hz) | 54dB (120Hz) | 47dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 150°C | 0°C ~ 150°C | 0°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220 | TO-220 | TO-220 |
