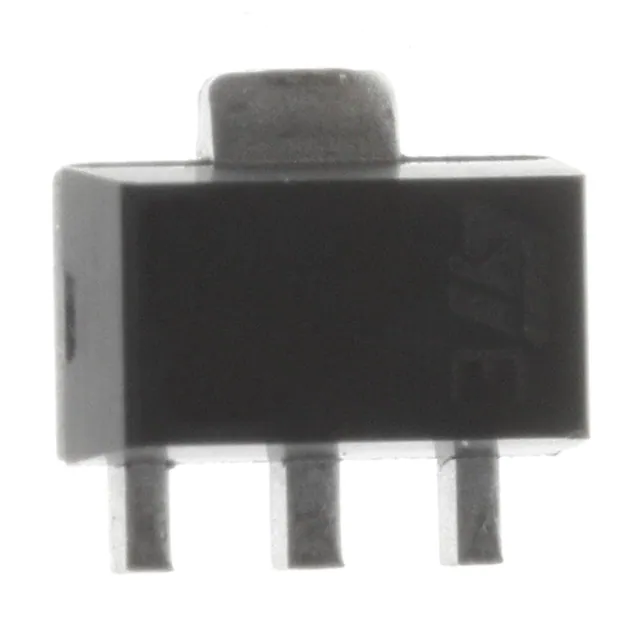

| Part Number | L78L09ACUTR | L78L05ACUTR | L78L06ACUTR | L78L08ACUTR | L78L09ABUTR |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 30V | 30V | 30V | 30V | 30V |
| Voltage - Output (Min/Fixed) | 9V | 5V | 6V | 8V | 9V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | - | - | - |
| Current - Output | 100mA | 100mA | 100mA | 100mA | 100mA |
| Current - Quiescent (Iq) | 5.5 mA | 5.5 mA | 5.5 mA | 5.5 mA | 5.5 mA |
| Current - Supply (Max) | 6 mA | 6 mA | 6 mA | 6 mA | 6 mA |
| PSRR | 44dB (120Hz) | 49dB (120Hz) | 46dB (120Hz) | 45dB (120Hz) | 44dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89-3 | SOT-89-3 | SOT-89-3 | SOT-89-3 | SOT-89-3 |
