Please send RFQ , we will respond immediately.

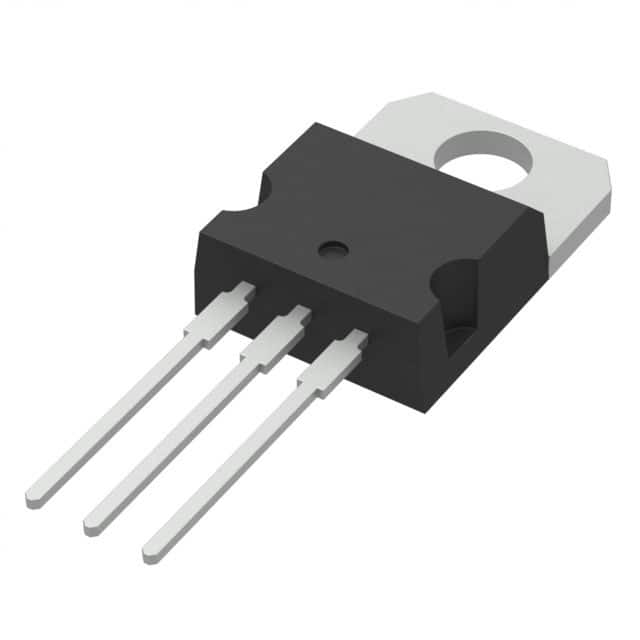

| Part Number | L7805CV-DG | L7808CV-DG | L7809CV-DG | L7815CV-DG | L7806CV-DG | L7805ACV-DG |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 35V | 35V | 35V | 35V | 35V | 35V |
| Voltage - Output (Min/Fixed) | 5V | 8V | 9V | 15V | 6V | 5V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 8 mA | 8 mA | 8 mA | 8 mA | 8 mA | 6 mA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | 62dB (120Hz) | 56dB (120Hz) | 55dB (120Hz) | 54dB (120Hz) | 59dB (120Hz) | 68dB (120Hz) |
| Control Features | - | - | - | - | - | - |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220 | TO-220 | TO-220 | TO-220 | TO-220 | TO-220 |
