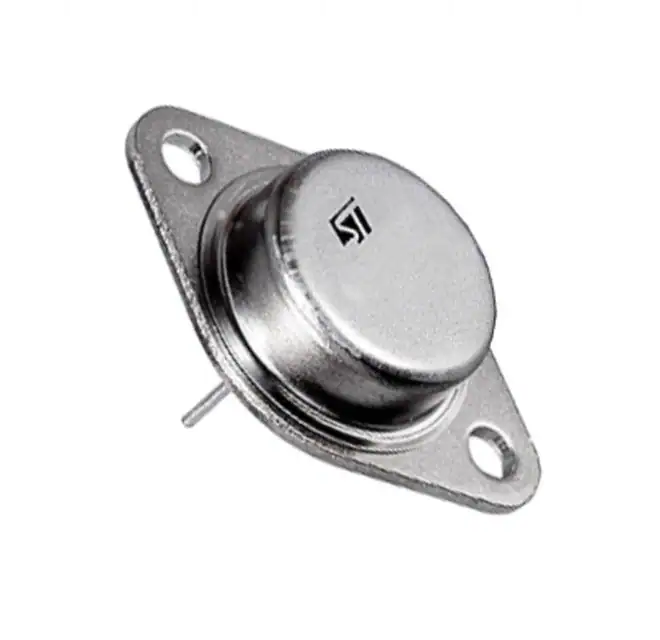

| Part Number | L7805CT | L7805CV | L7805T | L7815CT | L7806CT | L7805CDT | L7805CP |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 35V | 35V | 35V | 35V | 35V | 35V | 35V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 15V | 6V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) | 2V @ 1A (Typ) |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 8 mA | 8 mA | 8 mA | 8 mA | 8 mA | 8 mA | 8 mA |
| Current - Supply (Max) | - | - | - | - | - | - | - |
| PSRR | 62dB (120Hz) | 62dB (120Hz) | 62dB (120Hz) | 54dB (120Hz) | 59dB (120Hz) | 62dB (120Hz) | 62dB (120Hz) |
| Control Features | - | - | - | - | - | - | - |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | -55°C ~ 150°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-204AA, TO-3 | TO-220-3 | TO-204AA, TO-3 | TO-204AA, TO-3 | TO-204AA, TO-3 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-220-3 Full Pack |
| Supplier Device Package | TO-3 | TO-220 | TO-3 | TO-3 | TO-3 | DPAK | TO-220FP |
