Please send RFQ , we will respond immediately.

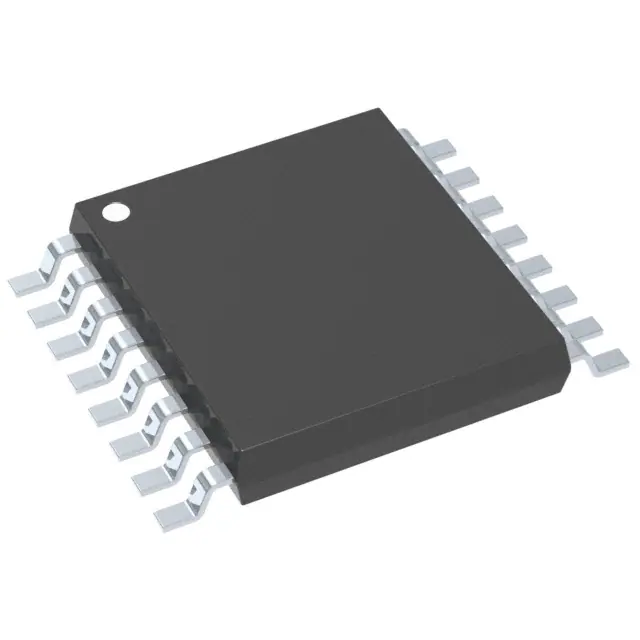

| Part Number | L6732 | L6732C | L6738 | L6722 | L6730 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Not For New Designs | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 3 | 1 |
| Output Phases | 1 | 1 | 1 | 3 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14V | 4.5V ~ 14V | 5V ~ 12V | 7V ~ 15V | 4.5V ~ 14V |
| Frequency - Switching | 250kHz, 500kHz | 250kHz, 500kHz | 200kHz | 100kHz | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 100% | 100% | 100% | 80% | 100% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes | No | Yes |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Current Limit, Enable, Phase Control, Power Good, Soft Start | Current Limit, Enable, Phase Control, Power Good, Soft Start | Enable, Frequency Control, Phase Control, Power Good | Frequency Control, Phase Control, Power Good | Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-VFQFN Exposed Pad | 36-VFQFN Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-HTSSOP | 16-HTSSOP | 16-VFQFPN (3x3) | 36-VFQFPN (6x6) | 20-HTSSOP |
