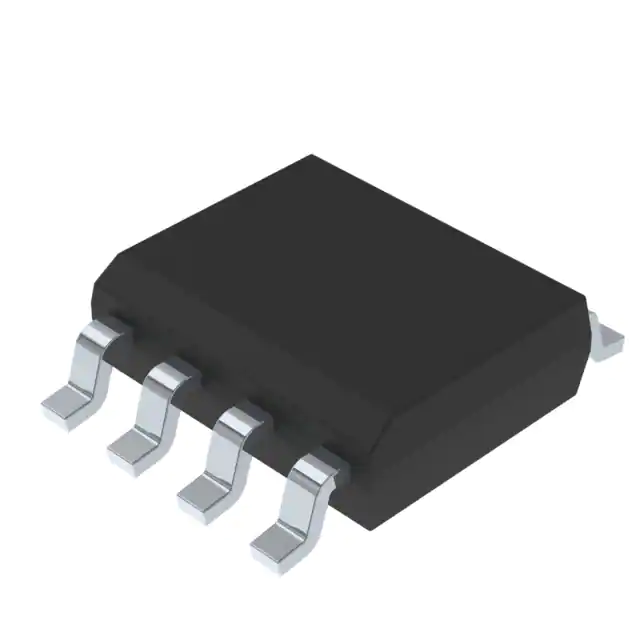

| Part Number | L6569D | L6569 | L6569A | L6569AD |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 16.6V | 10V ~ 16.6V | 10V ~ 16.6V | 10V ~ 16.6V |
| Logic Voltage - VIL, VIH | - | - | - | - |
| Current - Peak Output (Source, Sink) | 170mA, 270mA | 170mA, 270mA | 170mA, 270mA | 170mA, 270mA |
| Input Type | RC Input Circuit | RC Input Circuit | RC Input Circuit | RC Input Circuit |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V | 600 V | 600 V |
| Rise / Fall Time (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Through Hole | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-Mini DIP | 8-Mini DIP | 8-SOIC |
