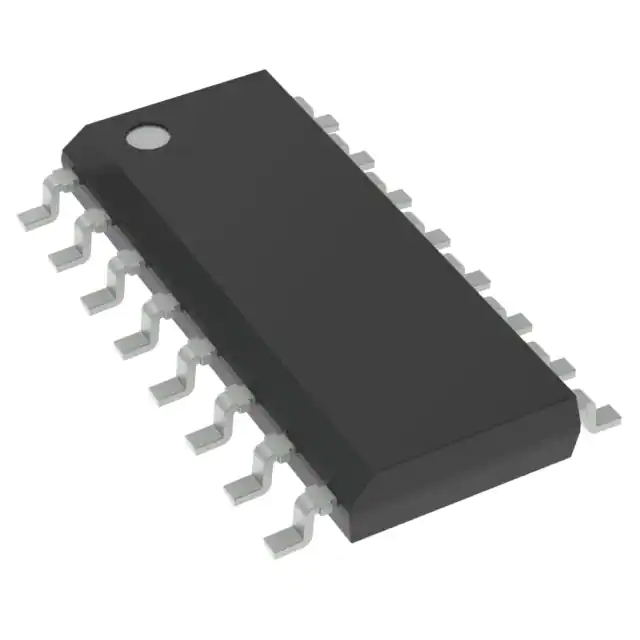

| Part Number | L6390DTR | L6398DTR | L6399DTR | L6393DTR | L6395DTR | L6392DTR | L6391DTR |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Synchronous | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 12.5V ~ 20V | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V | 12.5V ~ 20V | 12.5V ~ 20V |
| Logic Voltage - VIL, VIH | 1.1V, 1.9V | 1.1V, 1.9V | 1.1V, 1.9V | 1.1V, 1.9V | 1.1V, 1.9V | 1.1V, 1.9V | 1.1V, 1.9V |
| Current - Peak Output (Source, Sink) | 290mA, 430mA | 290mA, 430mA | 290mA, 430mA | 290mA, 430mA | 290mA, 430mA | 290mA, 430mA | 290mA, 430mA |
| Input Type | Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Rise / Fall Time (Typ) | 75ns, 35ns | 75ns, 35ns | 75ns, 35ns | 75ns, 35ns | 75ns, 35ns | 75ns, 35ns | 75ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO | 8-SOIC | 8-SOIC | 14-SO | 8-SOIC | 14-SO | 14-SO |
