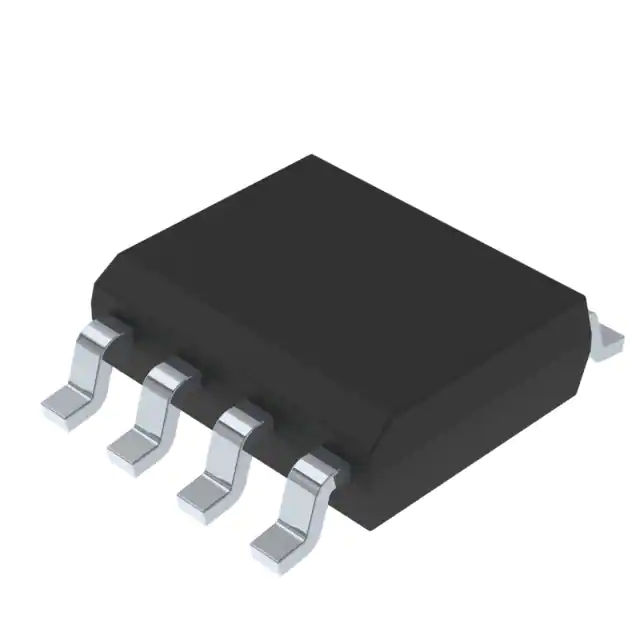

| Part Number | L6384ED | L6388ED | L6386ED | L6387ED | L6389ED | L6385ED | L6384D | L6384E |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Discontinued at Digi-Key |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Independent | Independent | Independent | Independent | Independent | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 14.6V ~ 16.6V | 17V (Max) | 17V (Max) | 17V (Max) | 17V (Max) | 17V (Max) | 14.6V ~ 16.6V | 14.6V ~ 16.6V |
| Logic Voltage - VIL, VIH | 1.5V, 3.6V | 1.1V, 1.8V | 1.5V, 3.6V | 1.5V, 3.6V | 1.1V, 1.8V | 1.5V, 3.6V | 1.5V, 3.6V | 1.5V, 3.6V |
| Current - Peak Output (Source, Sink) | 400mA, 650mA | 400mA, 650mA | 400mA, 650mA | 400mA, 650mA | 400mA, 650mA | 400mA, 650mA | 400mA, 650mA | 400mA, 650mA |
| Input Type | Inverting | Non-Inverting | Inverting | Inverting | Inverting | Inverting | Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Rise / Fall Time (Typ) | 50ns, 30ns | 70ns, 40ns | 50ns, 30ns | 50ns, 30ns | 70ns, 40ns | 50ns, 30ns | 50ns, 30ns | 50ns, 30ns |
| Operating Temperature | -45°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -45°C ~ 125°C (TJ) | -45°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -45°C ~ 125°C (TJ) | -45°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 14-SO | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-DIP |
