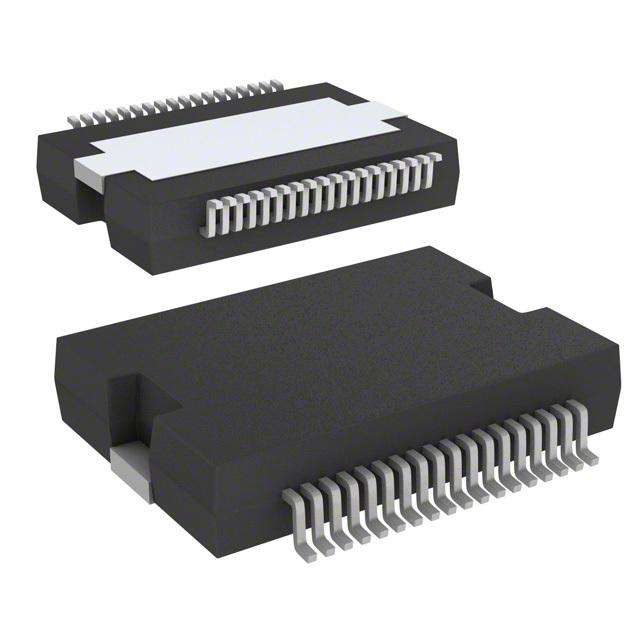

| Part Number | L6227PD | L6228PD | L6229PD | L6225PD | L6226PD | L6227D |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Motor Type - Stepper | Bipolar | Bipolar | - | Bipolar | Bipolar | Bipolar |
| Motor Type - AC, DC | Brushed DC | - | Brushless DC (BLDC) | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | Half Bridge (4) | Half Bridge (3) | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Technology | DMOS | DMOS | BiCDMOS | BiCDMOS | BiCDMOS | DMOS |
| Step Resolution | - | 1, 1/2 | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | 1.4A | 1.4A | 1.4A | 4A | 4A | 1.4A |
| Voltage - Supply | 8V ~ 52V | 8V ~ 52V | 12V ~ 52V | 8V ~ 52V | 8V ~ 52V | 8V ~ 52V |
| Voltage - Load | 8V ~ 52V | 8V ~ 52V | 12V ~ 52V | 8V ~ 52V | 8V ~ 52V | 8V ~ 52V |
| Operating Temperature | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PowerSO-36 | PowerSO-36 | PowerSO-36 | PowerSO-20 | PowerSO-36 | 24-SO |
