| Part Number | L6207PD013TR | L6206PD013TR | L6207D013TR |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Output Configuration | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) |
| Applications | DC Motors, Stepper Motors, Voltage Regulators | DC Motors, Stepper Motors, Voltage Regulators | DC Motors, Stepper Motors, Voltage Regulators |
| Interface | Logic | Logic | Logic |
| Load Type | Inductive | Inductive | Inductive |
| Technology | DMOS | BCDMOS | DMOS |
| Rds On (Typ) | 300mOhm | 300mOhm | 300mOhm |
| Current - Output / Channel | 2.8A | 2.8A | 2.8A |
| Current - Peak Output | 5.6A | 5.6A | 5.6A |
| Voltage - Supply | 8V ~ 52V | 8V ~ 52V | 8V ~ 52V |
| Voltage - Load | 8V ~ 52V | 8V ~ 52V | 8V ~ 52V |
| Operating Temperature | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, UVLO | Current Limiting, Over Temperature, UVLO | Current Limiting, Over Temperature, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

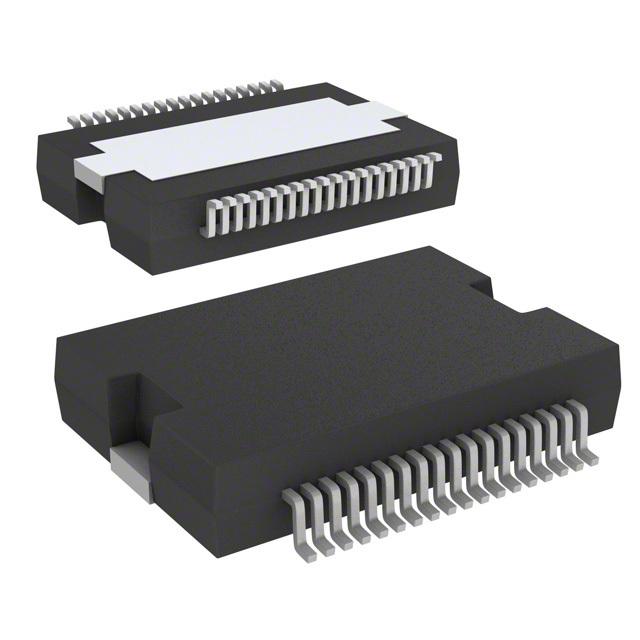

| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PowerSO-36 | PowerSO-36 | 24-SO |
